F-461

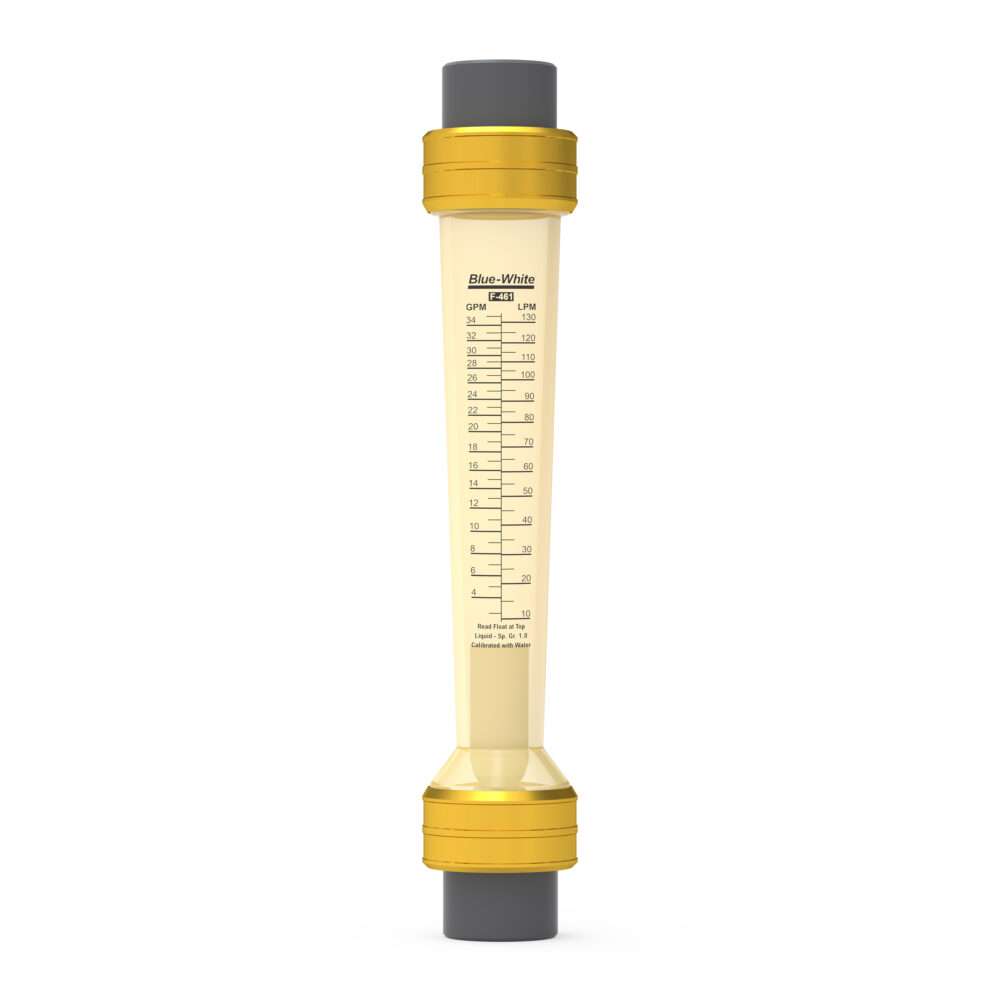

Polysulfone Flow Meter
F-461 Series Polysulfone Flow Meters feature precisely engineered float guide ribs, eliminating metals in the fluid path, and are ideal for corrosive environments such as deionized water or other applications where an all-plastic meter is desirable. The float is constructed ofPTFE and optional PVC or PVDF adapters are available for corrosive applications.
Technical Overview:
GPM
1 - 35
LPM
4 - 130
PSI
150
Bar
10.3
Fahrenheit (°F)
210
Celsius (°C)
98
Body Material
Polysulfone
Pipe Sizes
1″ female NPT fittings
Literature
F-461 Literature
Instruction Manuals
F-461 Instruction Manual – 80000-612
Technical Data Sheets
F-461 Technical Data Sheet – 85000-060
Catalog
Features
- For use in UltraPure applications
- No metal in the fluid path
- Rib guided float
- Polysulfone meter body resists high temperatures and pressures
- PTFE float and optional PVC or PVDF adapters for corrosive applications
- Direct reading permanent scale
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- PVDF adapters:210˚F / 98˚C @ 0 PSI
- PVC adapters:130˚F / 54˚C @ 0 PSI
Full Scale Accuracy:
- +/- 2 ½%
Meter Body Material:
- Polysulfone
Adapter Material:
- Female NPT (1”):PVDF or PVC
Union Nuts:
- Anodized Aluminum (optional PVC)
Float Material:
- PTFE
O-ring Material:
- FKM
Max Pressure Drop:
- 2 PSI
Approx. Shipping Weight:
- 3 lb. (1.4 kg)
Meter Ranges
Models with F/NPT connections
Models for Liquid with PVC adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-461100LX-16P | 1 to 10 | 4 to 40 | 1” | PTFE | PVC |
| F-461200LX-16P | 2 to 20 | 5 to 75 | 1” | PTFE | PVC |
| F-461300LX-16P | 3 to 35 | 12 to 130 | 1” | PTFE | PVC |
Models with F/NPT connections
Models for Liquid with PVDF adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-461100LX-16K | 1 to 10 | 4 to 40 | 1” | PTFE | PVDF |
| F-461200LX-16K | 2 to 20 | 5 to 75 | 1” | PTFE | PVDF |
| F-461300LX-16K | 3 to 35 | 12 to 130 | 1” | PTFE | PVDF |
